Operation process
Check whether the product indicator is off;Insert the charging gun of Chinese standard into the product, and then insert into the vehicle charging port;Operate the Chinese standard charging pile to start charging;The product will be automatically awakened by the Chinese standard pile and start charging interaction, and the indicator is on during charging;After charging stops, the product will automatically shut down and the indicator will be off.
Description of indicator state
After the charging gun is inserted, the charging pile starts charging. After A+ outputs 12V, the indicator lights up and begins to flash slowly;The charging pile and the product start charging interaction, and the indicator flashes quickly;After entering the charging stage, the indicator will be always on;After charging stops, the indicator goes out.
Operation instructions for reading logs
Unplug all charging guns and check that the product indicator is off;Insert the USB flash disk;Press the button to turn on, and wait for the indicator to light up;When the indicator flashes, it means that the log is being read. After reading, the indicator goes out;Unplug the USB flash disk after the indicator is off;Read the log file in the format of "SECC-XXX.bin" from the USB flash disk.

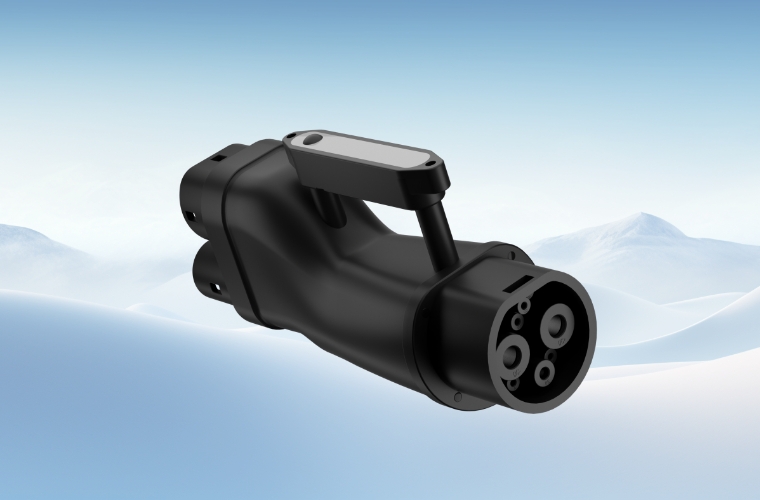

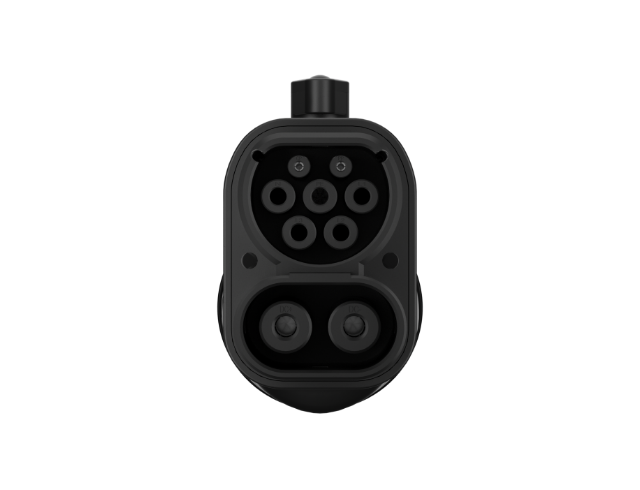

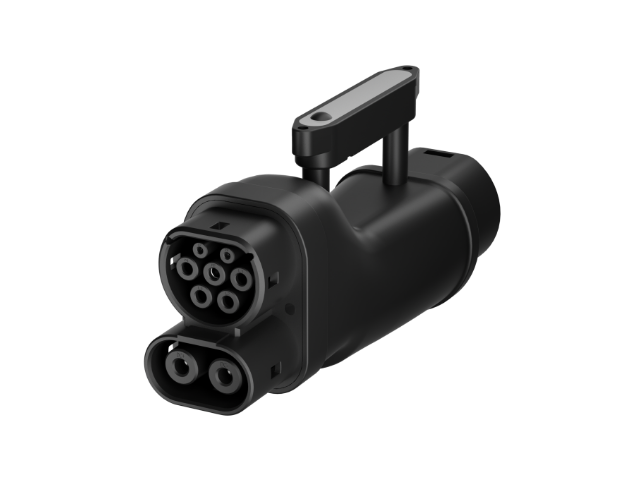

Parameters of GBT-CCS2 Adaptor
| Product model | KM- GBT- CCS2 | |
| Model | GB/T to CCS2 (Chinese standard to European standard) | |
| Working temperature | -20℃～+50℃ | |
| Storage temperature | -40℃～+85℃ | |
| Weight | ＜3kG | |
| Voltage range | 100～1000VDC | |
| Rated current | 200A Max | |
| Rated voltage | 1000VDC Max | |
| Charging current | 200ADC MAX | |
| Insulation resistance | >100MΩ | |
| Contact resistance | 0.5 mΩ Max | |
| Fireproof grade of rubber shell | UL94V-0 | |
| Waterproof grade | IP55 (after connection) | |
| IP54 | ||
| Shell | Thermoplastic | |
| Conductor | Copper alloy, silver plated on surface | |
| Temperature rise of terminal | <50K | |
| Coupling insertion and extraction force | <100N | |
