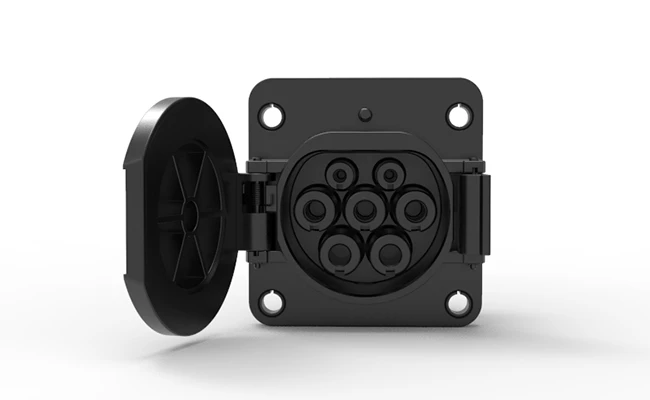

16A GB/T AC Charging Socket

Model: SCZ-16A-250V-L

EV charging inlet, for charging electric vehicles (EV) with alternating current (AC), AC GB/T, GB/T 20234.2-2015, 16 A / 250 V (AC), Single wires, length: 2 m / 3 m / customize, locking actuator: 12 V, Front and rear mounting, M6, housing: black, Protective cap with left flap.

Main Parameter

  • 125℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 250V

    Rated voltage

  • 16A

    Rated current

  • Rated current: L1/N/PE: 16A

  • Applicable wire diameter: 2.5mm², Insulation outer diameter: Φ3.55±0.15

  • The electronic lock is small in size and convenient for vehicle layout

  • 12V electronic lock on the left side

  • Front and rear mounting

  • Three kinds of dust covers are optional: left open cover, right open cover, and direct plug-in

Product Description

SCZ series GB/T AC charging socket are installed on  electric vehicles and can realize AC charging function by  cooperating with AC charging guns. The products meet GB/T 20234.2-2015 and meet RoHS requirements.

Technical Data
Electrical properties
Rated current

L1/N/PE: 16A;

CC/CP: 2A

Wire Diameter

L1/N/PE: 2.5mm²;

Outer diameter: Φ3.55±0.15

Rated voltage

L1/N/PE: 250V

CC/CP: 30V

Withstand voltageL1/N/PE: 2500V
Insulation resistance500V DC≥100MΩ
Terminal temperature rise<50K
Electronic locks12V
Electronic locks locationleft side
Mechanical properties
Insertion/withdrawal cycles>10,000 times
Insertion/Withdrawal force<100N
Environmental properties
Ambient temperature-40℃~+125℃
Degree of Protection

IP55

Salt spray class96h
Main material
ShellPA
Insulation partPA
Sealing partSilicone Rubber
Contact partCopper alloy
Mounting
Mounting type Front and rear mounting (0 to 90 degree frontal inclination possible)
Mounting hole diameter6.5 mm (ø)
Fixing screwsM6
Other

Temperature Sensor

NTC10K temperature monitoring principle:

1 temperature sensor routed between L1 and N terminals

Temperature sensor model: NTC R25℃=10KΩ±1%, curve coefficient B25℃/50℃=3950, allowable operating current: 2mA max.
