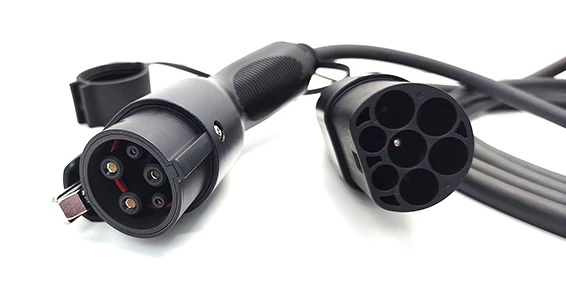

32A 7.2Kw Type 1 to Type 2 EV Charging Cable

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 1 Vehicle Inlets, compatible with type 1 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).

Main Advantage

  • Safety Assurance
    Already passed all tests of TUV & CE. There are all kinds of protective measures to ensure the safety of every user.
  • High quality cables
    TPU cables make the charging cable itself smaller in size and easier to charge.
  • Quick & Easy Operation
    Simply connect the plug with the EV's inlet, and then the charger will automatically detect the connection status and handshaking protocol to starts charging.
  • 50℃

    Max operating temperature

  • -30℃

    Min operating temperature

  • 250V

    Rated voltage

  • 16A/32A

    Rated current

32A 7.2Kw Type 1 to Type 2 EV Charging Cable Introduction

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 1 Vehicle Inlets, compatible with type 1 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).

Type 2 to Type 1 EV Charging Cable-5.webp

32A 7.2Kw Type 1 to Type 2 EV Charging Cable Features

  • Safety Assurance
    Already passed all tests of TUV and CE. There are all kinds of protective measures to ensure the safety of every user.

  • High quality cables
    Teison TPU cables make the charging gun itself smaller in size and easier to charge.

  • Quick and Easy Operation
    Simply connect the plug with the EV's inlet, and then the charger will automatically detect the connection status and handshaking protocol to starts charging.

  • Intelligent Chip
    Automatically repairing minor charging problems while charging.

Packaging

Type 2 to Type 1 EV Charging Cable-3.webp


Parameters of 32A 7.2Kw Type 1 to Type 2 EV Charging Cable

Technical Specification
Mechnical life no-load   plug in/out >10000 times
Coupled insertion force45N<F<80N
Impact of internal forceafford   1m drop and 2T vehicle run over pressure
Rated current16A/32A
Operation voltage250V
Insulation resistance>1000MΩ   (DC500V)
Terminal temperature rise<50K
Withstand voltage2000V
Contact resistance0.5mΩ   max
Operating temperature-30℃~50℃
Protection DegreeIP54   (Protective cap); IP44 (plugged in)
ShellThermoplastic,   flame retardant grade UL94 V-0
TerminalCopper   alloy, silver plated
ModelPlug StandardCurrentPhasePower
SC-EVC-001Type2 To Type216A1 Phase3.6KW
SC-EVC-002Type2 To Type216A3 Phase11KW
SC-EVC-003Type2 To Type232A1 Phase7.2KW
SC-EVC-004Type2 To Type232A3 Phase22KW
SC-EVC-005Type1 To Type216A1 Phase3.6KW
SC-EVC-006Type1 To Type232A1 Phase7.2KW
Rated CurrentCable SpecifificationShell and cable
16A Single Phase3x2.5mm²+2x0.5mm²Shell color: black white optional
         Cable color: black orange optional
16A Three Phase5x2.5mm²+2x0.5mm²
32A Single Phase3x6mm²+2x0.5mm²
32A Three Phase5x6mm²+2x0.5mm²
