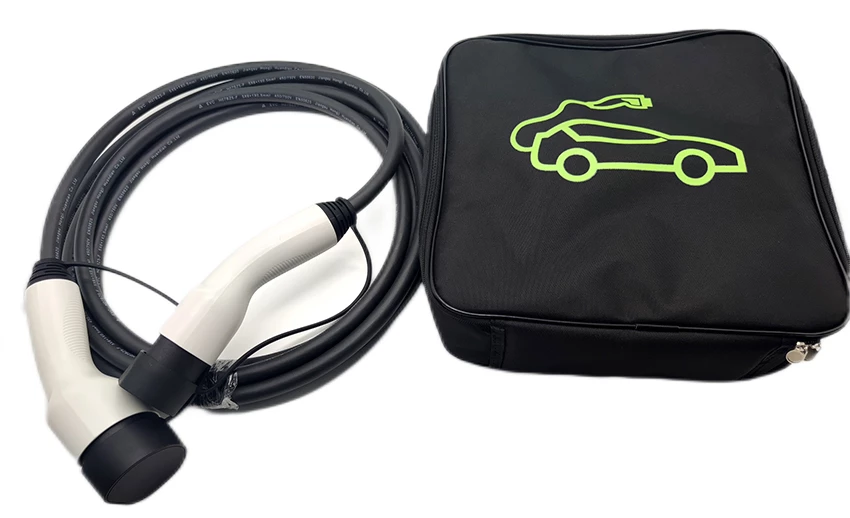

7.2Kw/22Kw Type 2 to Type 2 EV Charging Cable

Application: Audi, BMW, Hyundai, Jaguar, KIA, Mercedes, Mini, Nissan, Porsche, Rensult, SmartEQ, Tesla, Toyota, Volkswagen, Volvo

Main Advantage

  • High compatibility
    It can charge all EVs manufactured in Europe and USA, correctly and effectively.
  • Easy to install
    You are able to install the charger indoor or outdoor. Firmly locking the charger on the installation backplane can prevent theft.
  • Small size
    This product is small and exquisite, and thus it is very easy to transport, store and install.
  • 50℃

    Max operating temperature

  • -30℃

    Min operating temperature

  • 250V/480V

    Rated voltage

  • 32A

    Rated current

Introduction

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 2 Vehicle Inlets, compatible with type 2 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).

type2 EV Charging Cable-3.webp

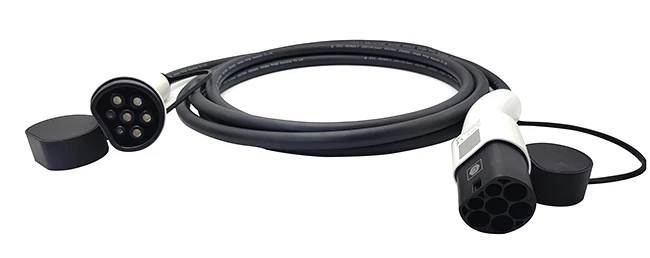

IEC62196-2 type2 to type2 ev charging cable connectors

  • 3.6kw, 7.2kw ,11kw, 22kw with 5m black white cable, or customized, meet IEC 62196-2 standard

  • Higher safety level, support outdoor using

  • Authoritatively certificated from CE, CCC, ROHS and so on

  • 1-year warranty for after-sale service

  • Customized service on LOGO, length, color and inner box


type-2-32a-three-phase-ev-charging-cable-2

Features

  • High compatibility
    It can charge all EVs manufactured in Europe and USA, correctly and effectively.

  • Easy to install
    Products are sent to you with associated installation tools. You are able to install the charger indoor or outdoor. Firmly locking the charger on the installation backplane can prevent theft.

  • Small size
    This product is small and exquisite, and thus it is very easy to transport, store and install.

  • Containing the intelligent chip
    It can automatically repair minor charging problems while charging. When a fault occurs, the lights will blink in different ways to indicate different problems.

  • LED Display
    shows charging status via screen

Charging Cable Safety

The cable should be kept out of puddles but can be kept outside.
Please remember to use the rubber cover to keep moisture from the connector when not in use. The vehicle will not Moisture is the most common issue experienced and will charge if it senses moisture lead to corrosion of the pins which are not covered by our warranty.

Parameters of 7.2Kw/22Kw Type 2 to Type 2 EV Charging Cable

Technical Specification
Mechnical life no-load   plug in/out >10000 times
Coupled insertion force45N<F<100N
Impact of internal forceafford   1m drop and 2T vehicle run over pressure
Rated current16A/32A
Operation voltage250V/480V
Insulation resistance>1000MΩ   (DC500V)
Terminal temperature rise<50K
Withstand voltage2000V
Contact resistance0.5mΩ   max
Operating temperature-30℃~50℃
Protection DegreeIP54   (Protective cap); IP44 (plugged in)
ShellThermoplastic,   flame retardant grade UL94 V-0
TerminalCopper   alloy, silver plated
ModelPlug StandardCurrentPhasePower
SC-EVC-001Type2 To Type216A1 Phase3.6KW
SC-EVC-002Type2 To Type216A3 Phase11KW
SC-EVC-003Type2 To Type232A1 Phase7.2KW
SC-EVC-004Type2 To Type232A3 Phase22KW
Rated CurrentCable SpecifificationShell and cable
16A Single Phase3x2.5mm²+2x0.5mm²Shell color: black white optional
Cable color: black orange optional
16A Three Phase5x2.5mm²+2x0.5mm²
32A Single Phase3x6mm²+2x0.5mm²
32A Three Phase5x6mm²+2x0.5mm²
