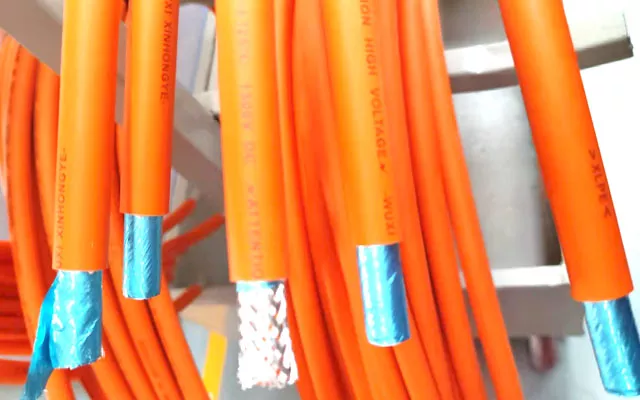

XLPE Shielded HV Copper Core Cable

Shielded high-voltage copper cables for hybrid and pure electric vehicles. Temperature class +150℃, XLPE/XLPO insulated. rated Voltage(V):AC/DC:600/900v,1000/1500V

Main Advantage

  • Flame Test:Flames extinguished at 70s,Keep unburned at least 50mm;
  • Oil Resistance:IlRM902,IRM903,Gasoline for 20h in each,Variation of OD≤15%,No cracks;
  • Reference Standard:ISO6722、QC/T 1037、ISO19642、LV216、DEKRA-179
  • 150℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • DC 1500V

    Rated voltage

  • UL94

    Flame Resistance

  • 5D

    Bending radius

Sailtran has a range of ev high voltage cablehighybrid vehicle high voltage cable, available in shielded, unshielded or multi-conductor configurations.

Sailtran offer a range of FHL2G, FHLAL2G, FHLR2GCB2G, FHLR4GC13X, FHLR91XC13X & FHLR2G2GCB2G types Cables.

Product Structure

  • Conductor:Bare Copper/Tinned Copper

  • Taping:Polyester tape/aluminum foil

  • Braid:Tinned copper

  • Insulation/Sheath:XLPE/XLPO (orange)


Product Features

  • Rated Temperature(℃):-40℃~125℃/150℃

  • Rated Voltage(V):AC/DC:600/900v,1000/1500V

  • Short-term Aging:240h,Comply with QC/T 1037

  • Long-term Aging: 3000h,Comply with QC/T 1037

  • Withstand Voltage:2.1kV/1min. ( 600/900v ) ,3.5kV/1min.( 1000/1500v )

  • Anti-tear Performance:>20N/mm

  • Minimum bending radius:5D(OD≤20mm),6D(OD >20mm)

  • Environmental Requirements:RoHS & REACH


Remarks: The above product specifications, dimensions and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.

Parameters of XLPE Shielded HV Copper Core Cable


Cable specifications

(mm2)

Maximum conductor resistance

(mQ/m at.20°C)

Rated voltage

(AC/DC)

 Ref. (A)

 Ref. (mm)

Rated temperature

Color

2.5

7.60

600V/900V  1000V/1500V

30

6.0

-40℃~ 125℃/150℃

orange

4

4.71

600V/900V  1000V/1500V

40

6.8

-40℃~ 125℃/150℃

orange

6

3.14

600V/900V  1000V/1500V

52

8.0

-40℃~ 125℃/150℃

orange

10

1.82

600V/900V  1000V/1500V

75

9.5

-40℃~ 125℃/150℃

orange

16

1.16

600V/900V  1000V/1500V

100

11.2

-40℃~ 125℃/150℃

orange

25

0.743

600V/900V  1000V/1500V

125

13.5

-40℃~ 125℃/150℃

orange

35

0.527

600V/900V  1000V/1500V

165

14.5

-40℃~ 125℃/150℃

orange

50

0.368

600V/900V  1000V/1500V

215

17.5

-40℃~ 125℃/150℃

orange

70

0.259

600V/900V  1000V/1500V

260

19.5

-40℃~ 125℃/150℃

orange

95

0.196

600V/900V  1000V/1500V

320

21.8

-40℃~ 125℃/150℃

orange

120

0.153

600V/900V  1000V/1500V

370

24.5

-40℃~ 125℃/150℃

orange
