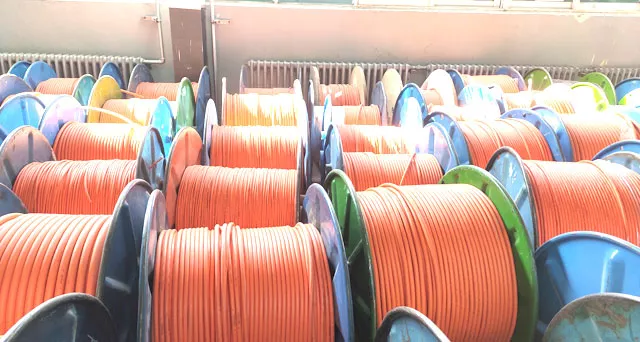

XLPE Unshielded HV Copper Core Cable

Unshielded high voltage copper cables for hybrid and pure electric vehicles. Temperature class +150℃, XLPE/XLPO insulated. rated Voltage:AC/DC:600/900v,1000/1500V.

Main Advantage

  • Flame Test:Flames extinguished at 70s,Keep unburned at least 50mm;
  • Oil Resistance:IRM902,IRM903,Gasoline for 20h in each, Variation of OD≤15%,No cracks;
  • Reference Standard:ISO6722、QC/T 1037、ISO19642、LV216、DEKRA-179;
  • 150℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • DC 1500V

    Rated voltage

  • UL94

    Flame Resistance

  • 5D

    Bending radius

Sailtran has a range of ev high voltage cablehighybrid vehicle high voltage cable, available in shielded, unshielded or multi-conductor configurations.

Sailtran offer a range of FHL2G, FHLAL2G, FHLR2GCB2G, FHLR4GC13X, FHLR91XC13X & FHLR2G2GCB2G types Cables.

Our experts match you with the optimum conductor cross-section, reducing weight, packaging space and costs.

Product Structure

Conductor:Bare Copper/Tinned Copper

Insulation/Sheath:XLPE/XLPO (orange)

Product Features

Rated Temperature:-40℃~125℃/150℃;

Rated Voltage:AC/DC:600/900v,1000/1500V ;

Withstand Voltage:1.0kV/30min. Rise to 5.0kV/5min. ( 600/900v) , 1.0kV/30min. Rise to 5.0kV/5min. Continue Rise to 8.0kV ( 1000/1500V ) ;

Anti-tear Performance:>20N/mm;

Minimum bending radius:5D(OD≤20mm),6D(OD >20mm);

Environmental Requirements:RoHS & REACH;


Remarks: The above product specifications, dimensions and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.

Parameters of XLPE Unshielded HV Copper Core Cable

Cable specifications

(mm2)

Conductor resistance max

(bare copper)

(mQ/m at.20°C)

Rated voltage

(AC/DC)

 Ref. (A)

 Ref. (mm)

Rated temperature

Color

2.5

7.60

600V/900V  1000V/1500V

30

3.70

-40℃~ 125℃/150℃

orange

4

4.71

600V/900V  1000V/1500V

40

4.50

-40℃~ 125℃/150℃

orange

6

3.14

600V/900V  1000V/1500V

52

5.00

-40℃~ 125℃/150℃

orange

10

1.82

600V/900V  1000V/1500V

75

6.50

-40℃~ 125℃/150℃

orange

16

1.16

600V/900V  1000V/1500V

100

8.30

-40℃~ 125℃/150℃

orange

25

0.743

600V/900V  1000V/1500V

125

10.20

-40℃~ 125℃/150℃

orange

35

0.527

600V/900V  1000V/1500V

165

11.50

-40℃~ 125℃/150℃

orange

50

0.368

600V/900V  1000V/1500V

215

13.50

-40℃~ 125℃/150℃

orange

70

0.259

600V/900V  1000V/1500V

260

15.50

-40℃~ 125℃/150℃

orange

95

0.196

600V/900V  1000V/1500V

320

17.50

-40℃~ 125℃/150℃

orange

120

0.153

600V/900V  1000V/1500V

370

19.50

-40℃~ 125℃/150℃

orange


Get Your Sample

If you are interested in our products, please feel free to send an email to or fill out the message form below. Our sales representative will contact you within 24 hours.
