SH1 Series 20A/30A/40A HV Interlock Plastic Connector

SH1 series products are high-voltage interlocking low-current plastic connectors, 20A/30A/40A optional, which are suitable for electrical connection between motor controllers, PDUs, all-in-one machines, PTCs and other on-board equipment. There are 2-hole and 3-hole options.

Main Advantage

  • High pressure interlock, secondary locking
  • Multi-key error proofing, shielding, waterproof
  • Delay separation (segment unlock), socket terminal TPA
  • 140℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 1000V

    Rated voltage

  • 20A

    Rated current

  • UL94 V0

    Flame Resistance

Introduction of SH1 HV Interlocking Plastic Connector

SH1 series products are high-voltage interlocking low-current plastic connectors, suitable for electrical connection between motor controllers, PDUs, all-in-one, PTC and other on-board equipment.

Features of SH1 HV Interlocking Plastic Connector

  • High pressure interlock, secondary locking function

  • Secondary separation: segment unlocking (delayed separation);

  • CPA TPA: Both connectors and terminals have a secondary locking structure;

  • The rated voltage of the product is increased to 1000V, and the withstand voltage is 4000V AC;

  • The product is resistant to neutral salt spray up to 504h (GB 2423.17);

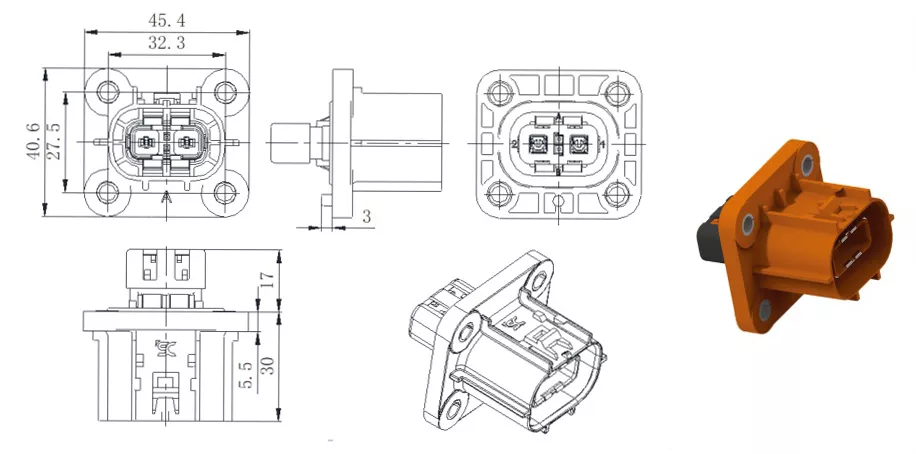

Size of SH1 HV Interlocking Plastic Connector


Parameters of SH1 Series 20A/30A/40A HV Interlock Plastic Connector

Electrical PerformanceRated voltage1000V
Withstand voltage4000V
Rated current20A / 30A / 40A
Insulation resistance5000MΩ
Mechanical PropertiesPins2 pinS、3 pinS
Mating cycles100Times
Cross sections2.5mm²  / 4mm²  / 6mm²
Vibration class acc. ToUSCAR  V2
Raw MaterialShellNylon
ShieldingCopper alloy
InsulatorNylon
SealingRubber material
Environmental PerformanceOperating temperature-40℃~140℃
Protection Grade IP68、IP69K
Salt Spray96h
