ccs type 2 connector

The CCS Type 2 connector is a standardized charging connector for electric vehicles (EVs) that supports both AC (alternating current) and DC (direct current) charging. It's widely used in Europe and other regions for fast charging of electric vehicles.

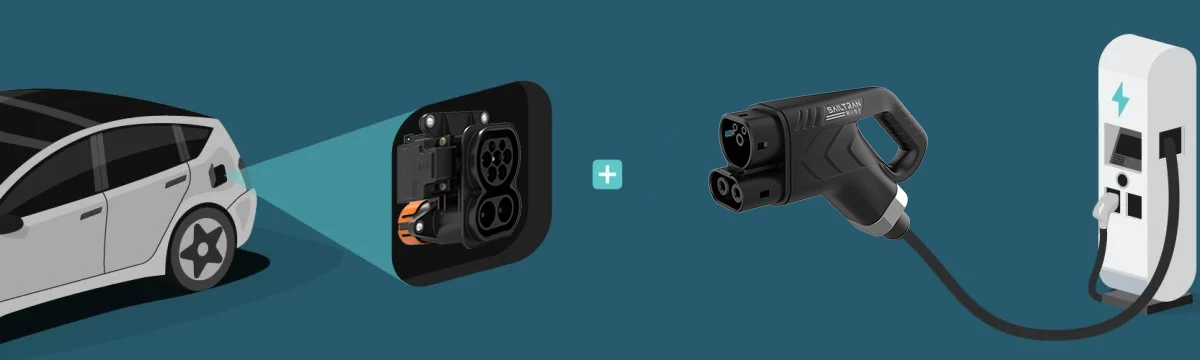

When it comes to the CCS Type 2 connector, it typically involves two main components: the CCS Type 2 Plug and the CCS Type 2 Inlet. These are essential elements in electric vehicles and charging infrastructure, respectively. Here's a detailed introduction to each of them:

CCS Type 2 Plug:

The CCS Type 2 Plug is the component attached to the electric vehicle, used to connect the vehicle to the charging infrastructure. It features the following:

1. Versatility: The CCS Type 2 Plug is compatible with both AC charging and DC fast charging, making it capable of meeting various charging speeds and power requirements.

2. DC Fast Charging: One of its key features is enabling high-power DC charging, allowing for rapid charging of the electric vehicle in a shorter amount of time. This is particularly useful for quickly replenishing the battery during long-distance travels.

3. Communication: The plug communicates with the charging station to negotiate charging rates, monitor charging status, and ensure a safe and efficient charging process.

4. Safety: The plug incorporates safety features to ensure proper grounding, temperature monitoring, and emergency shutdown procedures when necessary.

5. Shape and Insertion: CCS Type 2 Plugs typically have a rectangular shape, and the insertion and removal process is relatively straightforward, allowing users to easily connect and disconnect the charging link.

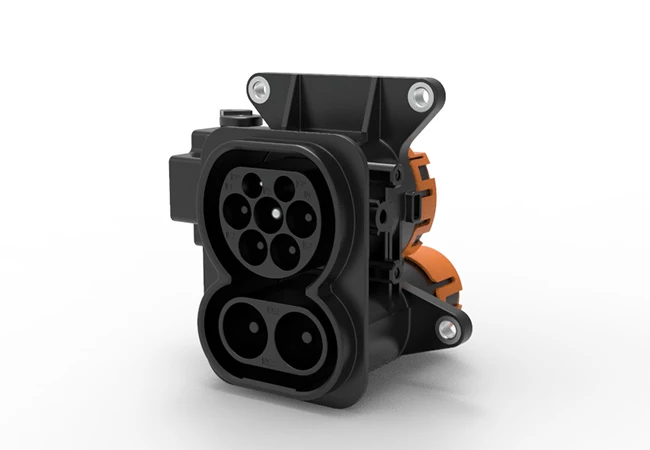

CCS Type 2 Inlet:

The CCS Type 2 Inlet is installed on the electric vehicle and is the component that receives the charging plug. Its features include:

1. Vehicle Connection: The inlet is located at the charging port of the electric vehicle, allowing the charging plug to be inserted for charging the electric vehicle.

2. Compatibility: The inlet is designed to snugly fit with the charging plug, ensuring a secure and reliable connection. They are designed to match the CCS Type 2 Plug to facilitate a smooth charging process.

3. Safety: Similar to the plug, the inlet also incorporates safety features to ensure proper grounding and monitor the charging connection status.

4. Shape and Design: The inlet is usually designed to harmonize with the external aesthetics of the electric vehicle, contributing to a neat appearance during the charging process.

In summary, the CCS Type 2 Plug and Inlet are crucial components in the electric vehicle charging process. They collectively support different charging speeds and power requirements, enabling electric vehicle owners to charge in a more convenient and flexible manner.
