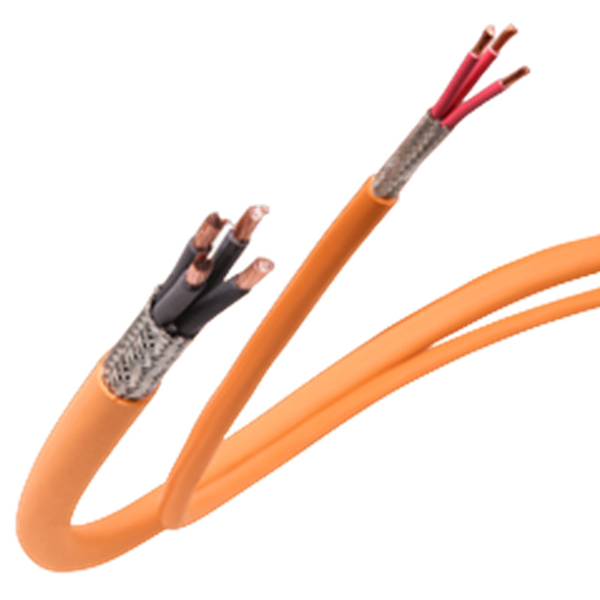

FHLR91XC13X and FHLR4GC13X Battery Cable

2023-08-18 09:38:57

FHLR91XC13X and FHLR4GC13X Battery Cable, used for battery cables in new energy vehicle applications. It has excellent resistance to high and low temperature, ozone, ultraviolet rays and weather resistance. High temperature, oil, fuel, hydrolysis, flame retardant, high wear resistance, easy to strip and process.


Conductor material: bare copper wire


Conductor type: IEC 60228 class 5


Core insulation: 91X: XLPO <6mm2 4G: EVA >6mm2


Sheath Marking: Orange


Shield material: Tinned copper wire braid


Shielding requirements: braiding density not less than 85%


Sheath Material : Thermoplastic Elastomer


Rated voltage: AC:1000V DC:1500V


Test voltage: 5000V/5min


Conductor resistance: IEC 60228 class 5


Minimum bending radius fixed: 8x d


Minimum bending radius movement: 12x d


Operating Temperature Fixed Min/Max: -40°C/150°C


Flame retardant grade: self-extinguishing and flame retardant in accordance with IEC60332-1-2


Certification: TUV&CE
