The current specification expansion of the CCS2 inlet of the front-installation method has been completed
Saichuan Electronics, in order to meet the market demand and give full play to our technical advantages in the field of new energy high-voltage electrical connection, recently, the company's R&D center has expanded the current specification and model of the CCS2 charging socket for the front-mounted style that has been on sale before. From the original 200A/250A, 80A/125A/150A/300A/400A has been added. So far, our CCS2 charging socket has completed full current coverage, from small power to high power, to meet various customer needs.
The product meets the requirements of IEC 62196.3-2022, standard interface 3-IVa, and RoH2.0. Various test data are superior to peer products, and have obtained TUV/CE certification.

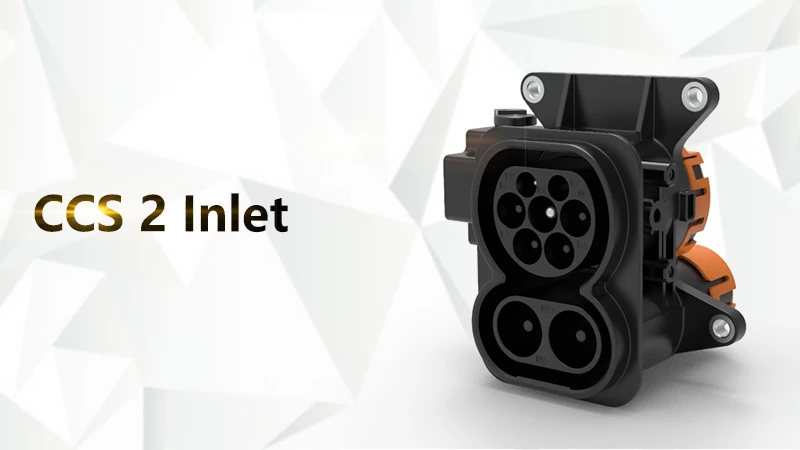

Available models of ccs2 inlet for front mounting
Product model | Order model | Product description |
SCZ-200A-1000V-EU | 21G0-00062-A | 200A CCS2 Inlet（No AC） |
SCZ-250A-1000V-EU | 21G0-00062-D | 250A CCS2 Inlet（No AC） |
SCZ-300A-1000V-EU | 21G0-00062-E | 300A CCS2 Inlet（No AC） |
SCZ-400A-1000V-EU | 21G0-00062-F | 400A CCS2 Inlet（No AC） |
SCZ-200A-1000V-EU G001 | 21G0-00168-A | 200A CCS2 Inlet (AC & DC, front mounting) |
SCZ-250A-1000V-EU G001 | 21G0-00168-B | 250A CCS2 Inlet (AC & DC, front mounting) |
SCZ-300A-1000V-EU G001 | 21G0-00168-C | 300A CCS2 Inlet (AC & DC, front mounting) |
SCZ-150A-1000V-EU G001 | 21G0-00168-D | 150A CCS2 Inlet (AC & DC, front mounting) |
SCZ-125A-1000V-EU G001 | 21G0-00168-E | 125A CCS2 Inlet (AC & DC, front mounting) |
SCZ-80A-1000V-EU G001 | 21G0-00168-F | 80A CCS2 Inlet (AC & DC, front mounting) |
SCZ-400A-1000V-EU G001 | 21G0-00168-G | 400A CCS2 Inlet (AC & DC, front mounting) |
CCS2 inlet adapter wire diameter
Number | Item | Adapted cable | Adapted wire diameter |
1 | DC+、DC- | 80A/16mm² 125A/35mm² 150A/50mm² 200A/70mm² 250A/95mm² 300A/95mm² 400A/120mm² | 16mm², Insulation OD: Φ8.0±0.2 35mm², Insulation OD: Φ11±0.2 50mm², Insulation OD: Φ13±0.2 70mm², Insulation OD: Φ15±0.2 95mm², Insulation OD: Φ17.3±0.3 120mm², Insulation OD.: Φ19±0.3 |
2 | PE | 25mm² | Insulation OD: Φ9.6±0.3 |
3 | L1、L2、L3、N | 6mm² | Insulation OD: Φ4.7±0.2 |
4 | PP/CP | 0.75mm² | Insulation OD: Φ1.75±0.1 |
5 | DC+ Temp1 | 0.5mm² | Insulation OD: Φ1.6±0.1 |
6 | DC- Temp2 | 0.5mm² | Insulation OD: Φ1.6±0.1 |
7 | L1 Temp3 | 0.5mm² | Insulation OD: Φ1.6±0.1 |
8 | Electronic locks | 0.5mm2 | Insulation OD: Φ1.6±0.1 |
