CCS Type 2 Socket / CCS 2 Inlet 80A~400A

SCZ series CCS 2 socket, rated voltage 1000V, AC 32A three-phase. The current specification is 80A/125A/150A/200A/250A/300A/400A.

Main Advantage

  • Obtained CE/TUV certification
  • Screwless assembly; Stable temperature rise
  • One-piece shell, reducing the gap between plug and socket, improving locking reliability
  • 90℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 1000V

    Rated voltage

  • Max 400A

    Rated current

Introduction Of CCS 2 Socket

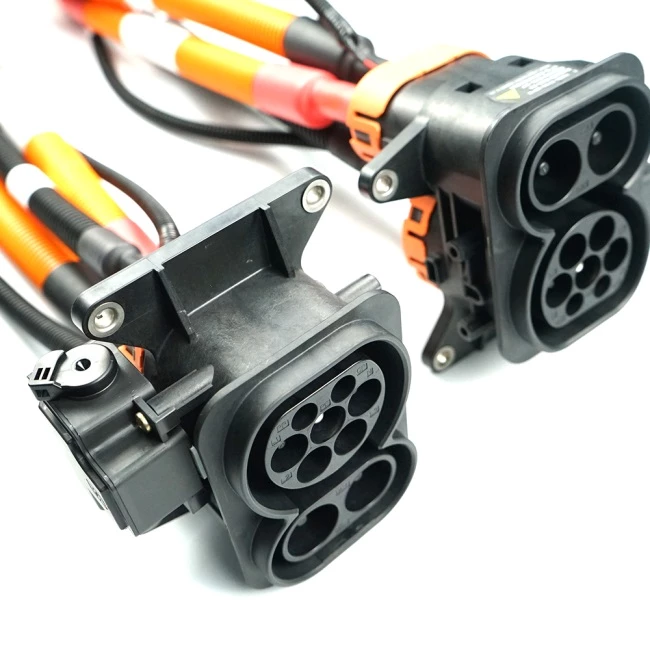

SCZ series European standard CCS 2 socket are installed on electric vehicles, CCS type 2 inlet. By cooperating with CCS combo 2 DC charging cable, the DC charging function is realized. The products meet IEC 62196.3-2022 and RoHS requirements.


ccs 2 socket.webp

Features Of CCS 2 Socket

  • Comply with IEC 62196.3-2022

  • Rated voltage: 1000V

  • Rated current: DC 80A/125A/150A/200A/250A/300A/400A optional;  AC 32A three-phase;

  • 12V/24V electronic lock optional

  • Meet TUV/CE certification requirements

  • Anti-straight plug dust cover

  • 10000 times of plugging and unplugging cycles, stable temperature rise

  • Sailtran's CCS 2 socket bring you lower cost, faster delivery, better quality and better after-sales service.

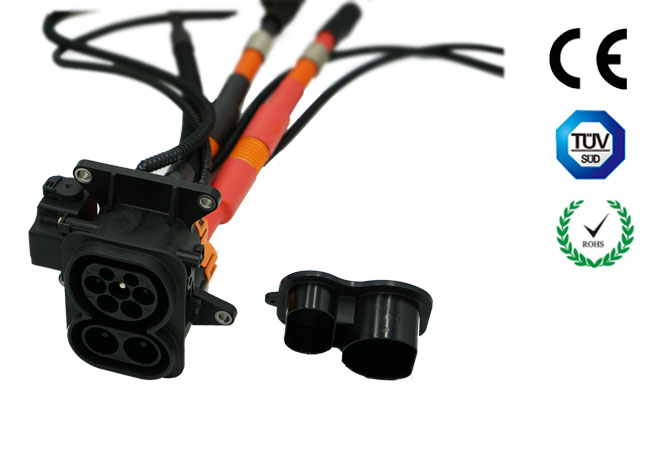

ccs type 2 inlet.webp

Mounting hole location Of CCS 2 Socket

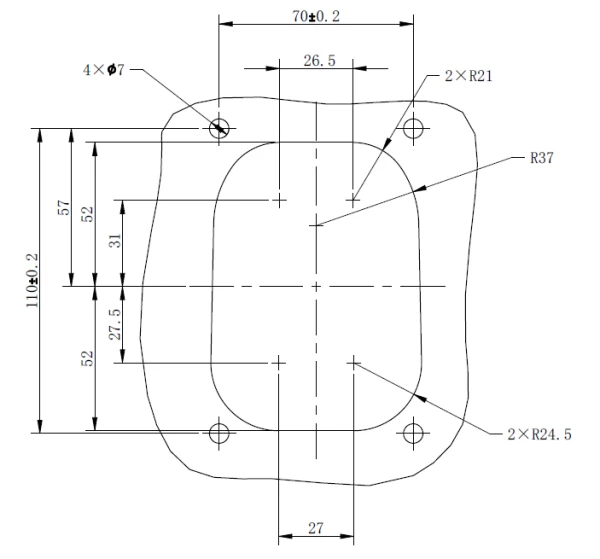

Type A adopts the front mounting method, and the opening size of the installation panel is as follows:

Type A opening size

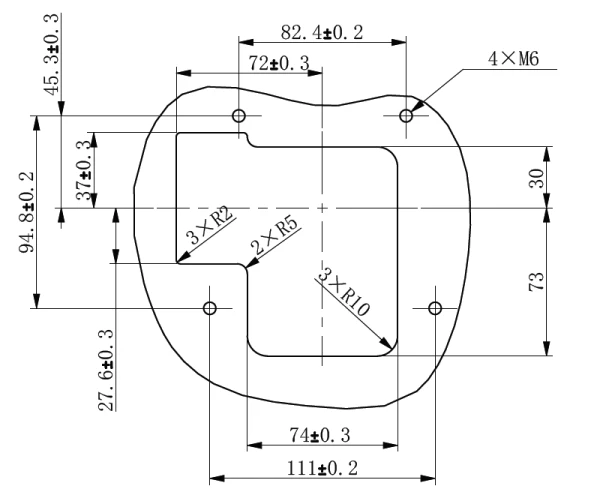

Type B adopts the rear mounting method, and the opening size of the installation panel is as follows:

Type B opening size

Temperature sensor in ccs 2 socket

AC: one temperature sensor PT1000 for L1 pin

DC: two independent temperature sensors PT1000 for DC+/DC

Temperature sensor model: PT1000, the temperature sensor model can be adjusted according to customer needs

Suggested temperature control: when the temperature reaches 100°C, current limiting treatment is performed, and when the temperature reaches 120°C, charging is stopped.

Allowable working current: 0.3mA max, Voltage resistance: 3000V AC (60s)

Parameters of CCS Type 2 Socket / CCS 2 Inlet 80A~400A

ModelCCS 2 socket
Rated current

DC+/DC-:80A,125A,150A,200A,250A,300A,400A;

L1/L2/L3/N:32A;

PP/CP:2A

Wire Diameter

80A/16mm2

125A/35mm2

150A/50mm2

200A/70mm2

250A/95mm2

300A/95mm2

400A/120mm2

Rated voltage

DC+/DC-: 1000V DC;

L1/L2/L3/N: 480V AC;

PP/CP: 30V DC

Withstand voltage3000V AC / 1min. (DC + \ DC- \ PE)
Insulation resistance≥ 100mΩ 1000V DC (DC + / DC- / PE)
Electronic locks12V / 24V optional
Mechanical life10,000 times
Ambient temperature-40℃~50℃
Degree of Protection

IP55(When not mated)

IP44(After mated)

Main material
ShellPA
Insulation partPA
Sealing partSilicone Rubber
Contact partCopper alloy
