GB/T 80A~250A DC Non-Quick Change Charging Socket

SCZ series GB/T DC non-quick-change charging sockets has a rated voltage of 750V, a rated current of 80A/125A/200A/250A, and is suitable for cables of 25mm²/35mm²/50mm²/70mm².

Main Advantage

  • PCBA integrated design, reliable performance
  • Low-voltage lines and power lines are assembled separately for easy assembly
  • Dust cover form: left open cover / right open cover
  • 125℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 750V

    Rated voltage

  • Max 250A

    Rated current

Description of DC Non-Quick Change Charging Socket

SCZ series DC non-quick-change charging sockets are installed on electric vehicles. By cooperating with the DC charging gun, the DC charging function can be realized. The products meet GB/T 20234.3-2015 and RoHS requirements.

Features of DC Non-Quick Change Charging Socket

1,PCBA integrated design, safe and reliable performance


2,Modular design of low-voltage wiring harness, simple wiring harness assembly


  • Comply with GB/T20234.3-2015

  • Rated voltage: 750V

  • Rated current: 80A/125A/200A/250A

  • Parts used: commercial vehicle/passenger vehicle DC charging interface

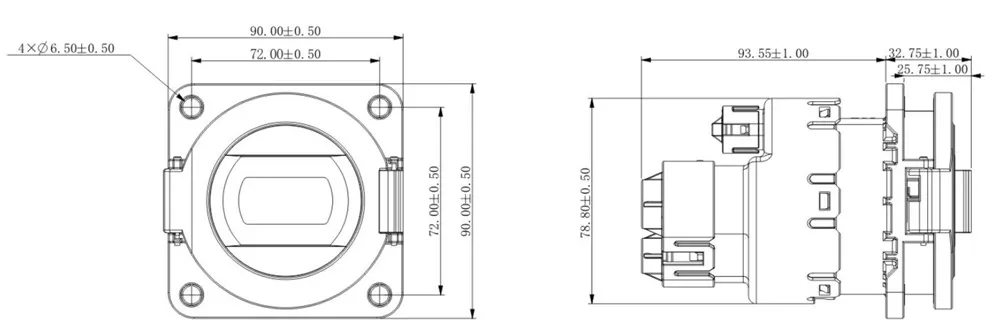

Size Of DC quick-change charging socket


Parameters of GB/T 80A~250A DC Non-Quick Change Charging Socket

Life of plugging and unplugging10000 times
Rated current80A/125A/200A/250A
Applicable wire diameter25mm²/35mm²/50mm²/70mm²
Wiring methodcrimp
Rated voltage750V
Withstand voltage3000V
Insulation resistance5000MΩ
Ambient temperature-30℃~50℃
Protection classAfter the cover is buckled, IP54, after the gun is inserted, IP55
Salt spray level96h
FlangeAluminum alloy
Rubber partsSilicone Rubber
Injection partsPA6+30% glass fiber
