GB/T AC and DC Integrated Charging Socket

Saichuan Electronics AC and DC integrated charging socket, the AC interface and DC interface are on the same installation surface, installed on the electric vehicle, and the charging function is realized by cooperating with the AC and DC charging guns. The product meets GB /T 20234-2015, RoHS compliant.

Main Advantage

  • AC and DC integrated design
  • GB/T 20234-2015 Standard
  • Rated current (DC): 80A\125A\200A\250A
  • 125℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 250V / 750V

    Rated voltage

Introduction of AC and DC integrated charging socket

Saichuan Electronics AC and DC integrated charging socket, the AC interface and DC interface are on the same installation surface, installed on the electric vehicle, and the charging function is realized by cooperating with the AC and DC charging cable. The product meets GB /T 20234-2015, RoHS compliant.


Application scenario: DC charging interface for new energy vehicles

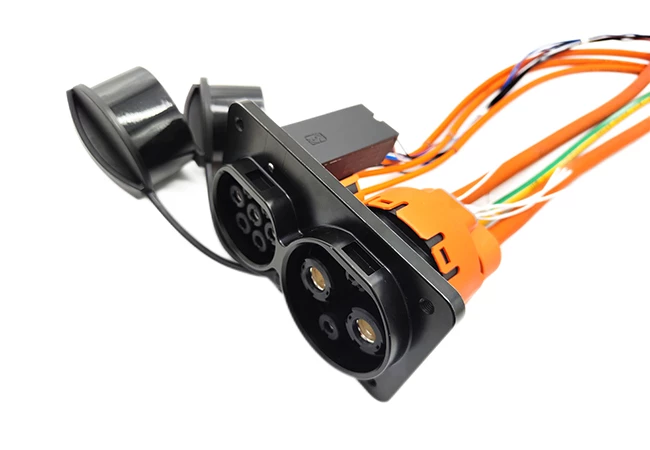

AC and DC integrated charging socket

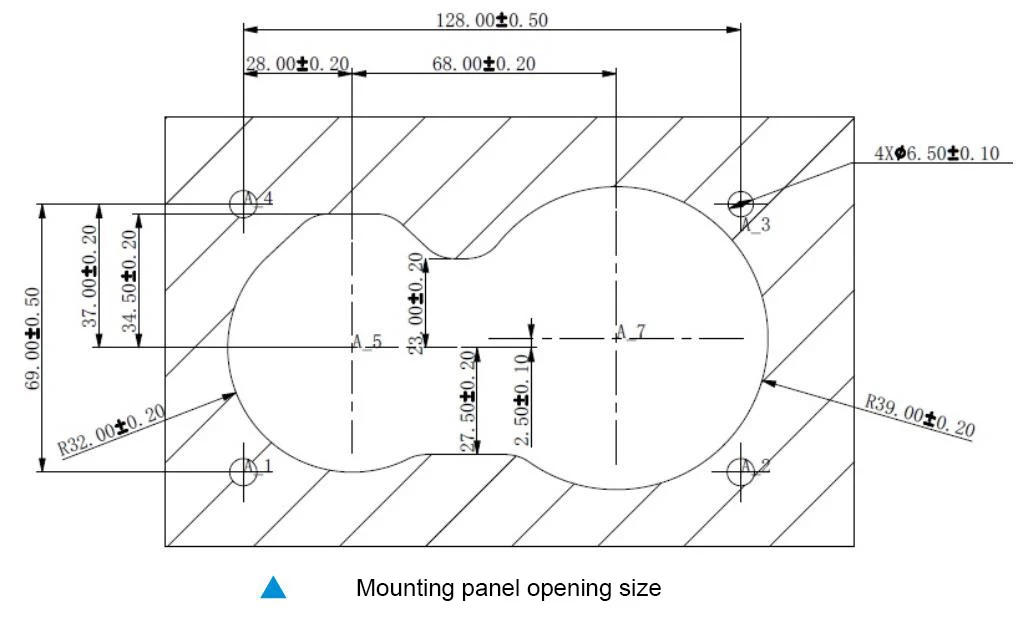

Installation dimensions


Parameters of GB/T AC and DC Integrated Charging Socket

Electrical performance (AC part)
Rated current16A, 32A, of which 16A is suitable for 2.5 flat conductor, 32A adaptable 4/6 flat conductor
Rated voltageL1/N/PE hole position 250V, remaining 30V
Insulation resistance≥200MΩ 500V DC
Voltage resistant2500V AC/1min(L1/N/PE)
Electrical properties (DC section)
Rated current

DC+/DC-: 80A, 125A, 200A, 250A,of which 80A is suitable With 25 flat wire, 125A suitable 35 flat wire, 200A adapted to 50 Flat wire, 250A adapted to 70 flat wire PE: Suitable for 25 flat conductors CC2/S+/S-/A+/A-: Suitable for 0.5 flat conductors

Rated voltageDC+\DC-\PE hole position 750V, remaining 30V
Insulation resistance≥200MΩ 1000V DC(DC+/DC-/PE)
Voltage resistant3000V AC/1min.(DC+\DC-\PE)
Mechanical properties
Mechanical life10000 times
Environmental performance
Use ambient temperature-30℃〜+50℃
Degree of protectionIP54 before inserting the gun, IP55 after inserting the gun
Contacts
materialCopper alloys
Surface treatmentsilvering
Production processMachining
insulator
materialthermoplastic
colorBlack + Orange
Production processInjection molding
Sealing strips and wire jackets
materialsilastic
colorRed/gray
Production processvulcanization
flange
materialAluminum alloy
colorBlack
Production processDie casting
