GB/T DC Quick Change Charging Socket 125A~400A

SKZ series national standard DC quick-change charging socket has a rated voltage of 750V/1000V, a current specification of 125A, 200A, 250A, 300A, 400A, and is suitable for 35mm²~120mm² cables.

Main Advantage

  • 250A power-on temperature rise is small and stable
  • Power terminals can be quickly replaced, reducing maintenance costs
  • It can realize modular material preparation, batch operation, and shorten the delivery cycle
  • 125℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 750V/1000V

    Rated voltage

  • Max 400A

    Rated current

Description of DC quick-change charging socket

SKZ series DC quick-change charging sockets are installed on electric vehicles. By cooperating with the DC charging gun, the DC charging function can be realized. The products meet GB/T 20234.3-2015 and comply with RoHS requirements.

Features of DC quick-change charging socket

  • The 250A power-on temperature rise is small and stable: the temperature rise is lower than 50K during 500 power-on cycles and 10,000 plug-and-pull times.

  • Low after-sales maintenance costs: when the power terminals are worn, dirty, or the insulating column is broken, it can be quickly replaced, and the product is easy to maintain.

  • High product assembly efficiency: parts can be pre-assembled, semi-finished products can be put into storage, modular material preparation, batch operations can be realized, and the delivery cycle can be shortened.

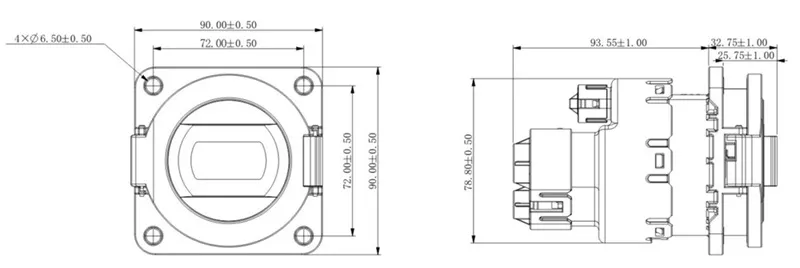

Size Of DC quick-change charging socket


Parameters of GB/T DC Quick Change Charging Socket 125A~400A

Life of plugging and unplugging10000 times
Rated current125A/200A/250A/300A/400A
Applicable wire diameter35mm²/50mm²/70mm²/95mm²/120mm²
Wiring methodcrimp
Rated voltage750V/1000V
Withstand voltage3000V
Insulation resistance5000MΩ
Ambient temperature-30℃~50℃
Protection classAfter the cover is buckled, IP54, after the gun is inserted, IP55
Salt spray level96h
Flange MaterialsAluminum alloy
Sealing partsSilicone Rubber
Insulator MaterialsPA6-GF30
Contact partsSilver plated copper alloy
