SS3 250A MSD Manual Service Disconnect For Energy Storage System

The mechanical switch of the high-voltage power supply of the SS3 series energy storage system is a device for manually cutting off the power supply of the high-voltage system.

Main Advantage

  • IP67 waterproof function and IPXXB anti-touch function
  • High current carrying, low temperature rise, high voltage interlock
  • 125℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 1500V

    Rated voltage

  • 250A

    Rated current

Introduction of MSD Manual Service Disconnect

The mechanical switch of the high-voltage power supply of the energy storage system is a device for manually cutting off the power supply of the high-voltage system.

Features of MSD Manual Service Disconnect

  • The product has IP67 waterproof function and IPXXB anti-touch function;

  • The product is identifiable when it is assembled in place, and the screw connection is reliable;

  • High current carrying, low temperature rise, high voltage interlock.

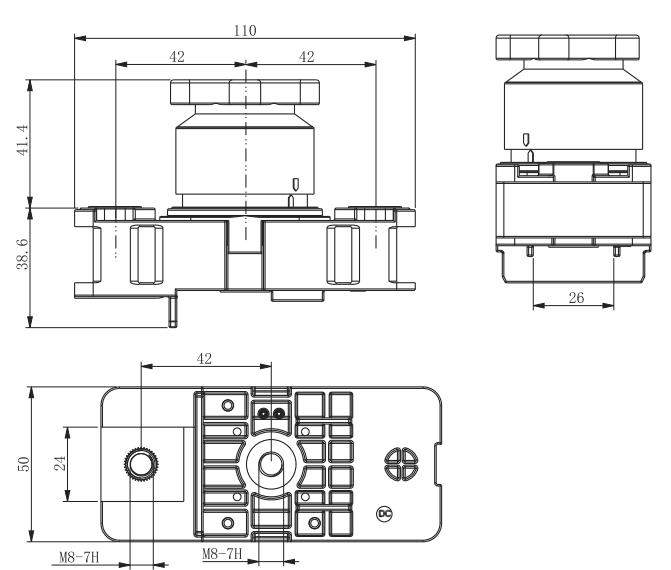

Size of MSD Manual Service Disconnect

MSD Manual Service Disconnect size.jpg

Screw effective depth <10mm

Parameters of SS3 250A MSD Manual Service Disconnect For Energy Storage System

Mechanical performance
Mechanical life50 times
Vibration levelQC/T 1067.1-2017 V1
Connection methodscrew connection
Electrical performance
Rated current250A MAX
Rated voltage1500V
Voltage withstandNot less than 5000V DC
Insulation resistance1000 MΩ
Environment performance
Protection classIP67、IPXXB
temperature class-40℃~125℃
Flammability ratingUL94 V-0
Salt spray level

Neutral salt spray 48H, neutral salt spray 480H after plugging

Material Description
Insulation partsNylon
Sealing partsSilicone Rubber
Contact partSilver Plated Copper Alloy
