SS2 300A Battery Busbar Connector

SS2 type energy storage battery busbar connector, rated current 300A, voltage 1500V. Quick installation and quick replacement.SS2 type energy storage battery busbar connector, rated current 300A, voltage 1500V. Quick installation and quick replacement.

Main Advantage

  • Quick installation by snapping the top cover
  • Quick disassembly for easy maintenance
  • Realize two-way copper bar installation, avoid unnecessary base direction exchange and re-installation
  • 125℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 1500V

    Rated voltage

  • Max 300A

    Rated current


Introduction of ss2 energy storage busbar connectors

With the development of the energy storage industry, the market demand for liquid-cooled energy storage technology solutions has gradually increased, and at the same time, higher technical requirements have been put forward for the waterproof performance of connectors for energy storage systems. Developed copper bar connectors with higher waterproof performance, which solved customer pain points.


SS2 type energy storage battery busbar connector, rated current 300A, voltage 1500V. Quick installation and quick replacement.

Features of energy storage connector

  • Quick installation: directly contact the battery module on the rack bus, and the upper cover can be quickly installed by withholding;

  • Quick disassembly for easy maintenance;

  • Diverse application fields: Modular design allows different currents;

  • Realize the installation of two-way copper bars to avoid unnecessary exchange and re-installation of the base direction;

  • Protection grade IP65;

  • Provide non-waterproof version with strong optionality;

Installation size of energy storage connector

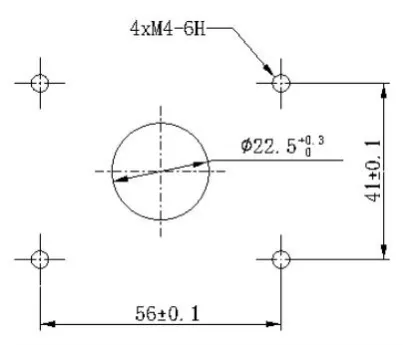

Recommended Mounting Panel Cutout Dimensions: Recommended Fastening Bolts: M4*20


Parameters of SS2 300A Battery Busbar Connector

Mechanical life20 times (waterproof);
50 times (not waterproof)
Rated current

300A MAX

Rated voltage1500V
Withstand voltage3000V
Insulation resistance500 MΩ  MIN
Protection classIP65
Operating temperature-40℃~125℃
Temperature rise45K
Salt spray levelNeutral salt spray 48h
(exposed part after assembly)
Shell materialNylon
Sealing partsSilicone Rubber
Contact partsSilver plated copper
RoHSYes
