SS1 60A-120A Energy Storage Connector

SS1 6mm type energy storage connector, mainly including 60A\80A\120A series. Corresponding to 10 mm², 16 mm², 25 mm² high-voltage cables.

Main Advantage

  • With secondary locking function, it is safer and more reliable;
  • Supports first crimping and then threading, reducing maintenance costs;
  • Key position error proofing, 360° blind mating and rotation
  • 125℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 1000V

    Rated voltage

  • Max 120A

    Rated current

Introduction of energy storage connector

SS1 6mm type energy storage connector, mainly including 60A\80A\120A series. It has functions such as key position error prevention, positive and negative color error prevention, 360° rotation, etc.,

Corresponding to 10 mm², 16 mm², 25 mm² high-voltage cables. It is suitable for high-voltage connection between energy storage cabinets, energy storage stations, mobile energy storage vehicles, photovoltaic power stations and other components.

Features of energy storage connector

  • It has a secondary locking function, which is safer and more reliable;

  • The product supports crimping the terminal first and then threading the assembly. If the power terminal is damaged, the plug can be replaced separately without replacing the cable;

  • It has the function of key position error prevention, and meets the requirements of 360° blind insertion. After insertion, it can realize 360° rotation to avoid user misoperation to the greatest extent;

  • Color error proof, easy to identify battery poles;

  • Optional protection grade IP67;

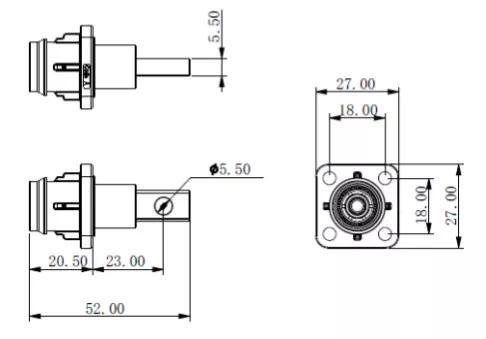

Installation size of energy storage connector


Parameters of SS1 60A-120A Energy Storage Connector

Mechanical life100 times
Vibration levelQC/T 1067.1-2017 V1

Applicable cables10mm²16mm²25mm²
Rated current60A80A120A
Rated voltage1000V
Withstand voltage3000V
Insulation resistance5000MΩ(drying) / ≥300MΩ(RH 95%)
Protection classIP67 (optional)
Operating temperature-40℃~125℃
Temperature rise45K
Salt spray levelNeutral salt spray: 48h (unsealed)/ 480h (sealed)
Shell materialNylon
Sealing partsSilicone Rubber
Contact partsSilver plated copper
