Type 2 AC Charging Inlet 16A/32A

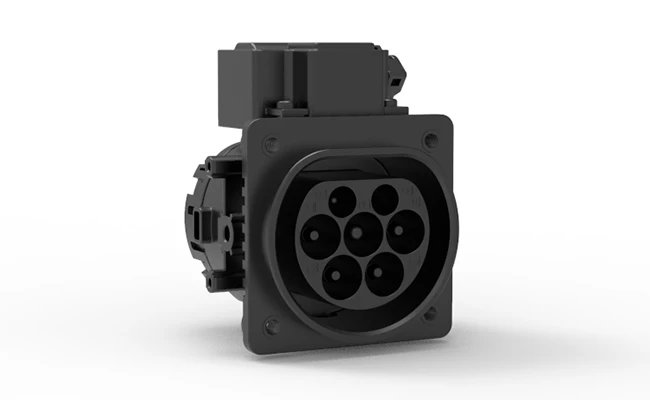

TYPE 2 Charging Socket for European Standard AC Charging, IEC 62196.2, 16 A / 250 V AC Single Phase, Electronic Lock: 12V, Rear Mounting, Direct plug the dust cover.

Main Advantage

  • 12V DC electronic lock, switch type/resistive type optional
  • Small size, easy to arrange space
  • +50℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 250/480 V

    Rated voltage

  • 16A/32A

    Rated current

Introduction Of Type 2 AC Charging Inlet

SCZ series European standard TYPE 2 charging sockets are installed on electric vehicles, and can realize charging function by cooperating with Type2 AC charging cables. The products meet IEC 62196.2, standard interface 2-IIf, and RoHS2.0 requirements.


Features Of  Type 2 AC Charging Inlet

  • Rated current:L1/L2/L3/N:  16A / 32A

  • Rated voltage:250 V / 480V

  • Cable specification: 2.5mm² / 6mm²

  • The temperature sensor is close to the power terminal, with high sensitivity, accuracy and reliability

  • 12V DC electronic lock, switch type/resistive type optional


Parameters of Type 2 AC Charging Inlet 16A/32A

Electrical properties
Rated current

L1/L2/L3/N: 16A / 32A;

PP/CP:2A

Wire Diameter

L1/L2/L3/N: 2.5mm²(16A);

L1/L2/L3/N: 6mm²(32A);
Rated voltage

L1/L2/L3/N: 250V / 480V AC;

PP/CP: 30V DC

Withstand voltage

L1/L2/L3/N/PE and other contacts: 2000V AC(normal temperature);

other contacts:500V AC(normal temperature)

Insulation resistance≥5000MΩ(normal temperature) under 1000V DC
Terminal temperature rise<50K
Electronic locks12V / 24V
Electronic locks locationleft / right / Top center
Mechanical properties
Insertion/withdrawal cycles>10,000 times
Insertion/Withdrawal force<100N
Environmental properties
Ambient temperature-40℃~+50℃
Degree of Protection

IP44(After mated)

Salt spray class96h
Main material
ShellPA
Insulation partPA
Sealing partSilicone Rubber
Contact partCopper alloy
Mounting
Mounting type Rear mounting
Mounting hole diameter6.5 mm (ø)
Fixing screwsM6
