GB/T AC Charging Socket 16A/32A

SCZ series GB/T AC charging socket rated voltage 250V, current 16A/32A, applicable cable 2.5mm²/4mm²/6mm²

Main Advantage

  • The electronic lock is small in size and convenient for vehicle layout
  • High assembly efficiency, batch operation possible
  • 125℃

    Max operating temperature

  • -40℃

    Min operating temperature

  • 250V

    Rated voltage

  • Max 32A

    Rated current

Introduction Of GB/T AC Charging Socket

SCZ series AC charging sockets, installed on electric vehicles, can realize AC charging function by cooperating with AC charging guns. The products meet GB/T 20234.2-2015 and comply with RoHS requirements.

Features Of GB/T AC Charging Socket

  • The electronic lock is small in size and convenient for vehicle layout

  • High assembly efficiency, batch operation possible

  • Comply with GB/T20234.2-2015

  • Rated voltage: 250V

  • Rated current: max 32A

  • Dust cover form: left open cover, right open cover

  • Parts used: AC charging interface for commercial vehicles/passenger vehicles

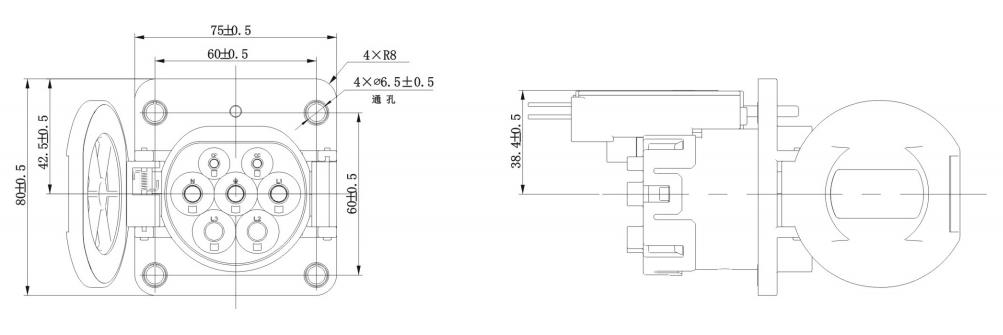

Sizes Of GB/T AC Charging Socket


Parameters of GB/T AC Charging Socket 16A/32A

Item No.SC-AC055-16A/32A
Plug life10000 times
Applicable wire diameter2.5mm²/4mm²/6mm²
Termination methodcrimp
Rated current16A/32A
Rated voltage250V
Insulation resistance5000MΩ
Withstand voltage2500V AC
Ambient temperature-30℃~+50℃
Protection classProtection level: IP54 after the cover is buckled, IP55 after the gun is inserted
Salt spray level96H
FlangePA6+30% glass fiber
Rubber partsSilicone Rubber
Injection partsPA6+30% glass fiber
