12V 4 pin electronic lock-switch type for ccs2 charging socket (type B)

2023-09-12 14:38:18

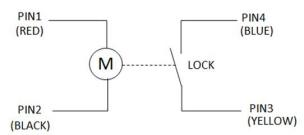

The electronic lock is driven by a motor driven, a micro switch is used as a position signal feedback device,the lock/ unlock and signal feedback are achieved by PIN1, PIN2, PIN3, PIN4 and external control circuitry.



Note: The signal switch detecting circuit current must not exceed 50mA (signal switch rating current is 12VDC 50mA).


Motor power end status

Signal feedback switch status



Electronic lock status

PIN1

PIN2

PIN3- PIN4

+12VDC

0VDC

connect



lock

0VDC

+12VDC

disconnect

unlock

Technical Parameters


Number

Type

Parameter

1

Working temperature

-40℃~85℃

2

Rated voltage

12V DC

3

Working voltage

9VDC~16VDC

4

Rated current

Rated current:≤0.5A; Signal switch current:≤50mA(12 V. dc)

5

Locked current

≤1A

6

Insulation resistance

500Vdc ,1min,Insulation resistance≥100MΩ

7

Hi-pot performance

500Vac ,1min,Leak current≤10mA

8

Drive time

300ms~500ms

9

OBC Lock

(recommend)

OBC drive electronic lock lock / unlock:


1,If the switch signal is detected within 300 ms in the driver, then delay driver 150ms to stop this drive, the electronic lock is normal, and the OBC stop this electronic lock / unlocking drive.


2, If the switch signal is not detected within 300 ms, the switch signal is continuously driven for 150 ms, and if the switch signal is detected within the additional 150 ms,then delay driver 150ms to

stop this drive; Or if the switch signal is still not detected, the switch signal is continuously driven for 150 ms, If the switch signal is detected within the 2nd additional 150ms, then delay driver 150ms to stop this drive; if the switch signal is not detected, the drive is stopped, and the

fault is reported.


10

Lock push force

≥ 35N (normal temperature 12VDC)

11

Protective level

IP65



12


Lifetime

30000 Cycles (12VDC Normal temperature, power-on time300ms,interval time 2S)

13

Location feedback

Lock / unlock single position feedback

14

Cable specification

FLRY-B 0.5 square
