specification of CCS2 Charging inlet Electronic Lock

2023-09-26 14:38:18

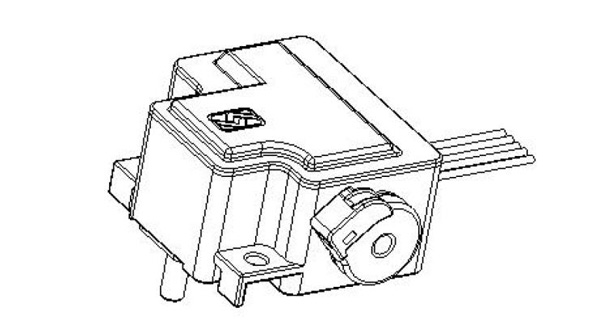

The LSL1-12 series of electronic locks developed by Shenzhen Learn since is mainly used in new energy  automotive ends of European standard charging and European charging pile. During the development process, the  electronic lock actuator is fully considered for the size, lock/unlock single / dual position signal feedback, overall  IP65 protection performance and other technical points, overcoming and solving the encountered problems and  concerns during the use of electronic locks.

24V 4 pin electronic lock-switch type

The electronic lock is driven by a motor driven, a micro switch is used as a position signal feedback device,  the lock/ unlock and signal feedback are achieved by PIN1, PIN2, PIN3, PIN4 and external control circuitry



Motor power end status

Signal feedback switch status



Electronic lock status

PIN1

PIN2

PIN3- PIN4

+24VDC

0VDC


connect


lock

0VDC

+24VDC

disconnect

unlock


Note: The signal switch detecting circuit current must not exceed 50mA (signal switch rating current is 24VDC 50mA).

Technical Parameters


Number

Type

Parameter

1

Working temperature

-40℃~85℃

2

Rated voltage

24VDC

3

Working voltage

18VDC~32VDC

4

Rated current

Rated current:≤0.5A; Signal switch current:≤50mA(12 V. dc)

5

Locked current

≤1A

6

Insulation resistance

500Vdc ,1min,Insulation resistance≥100MΩ

7

Hi-pot performance

500Vac ,1min,Leak current≤10mA

8

Drive time

300ms~600ms

9

OBC

OBC drive electronic lock lock / unlock:
