What to pay attention to when crimping the terminal of the energy storage connector?

2022-11-29 16:09:23

If you want to ask what is the hottest connector at present, you must not bypass the new energy connector. The new energy series connector includes energy storage, EV charging cable, ev high-voltage interlock, etc. This article mainly wants to explain what to pay attention to when crimping the terminal of the energy storage connector. In order to let everyone have a deeper understanding of the crimping of the terminal of the energy storage connector, the following Saichuan electronic high-voltage connector manufacturer will come to popular science about energy storage Precautions when crimping connector terminals.

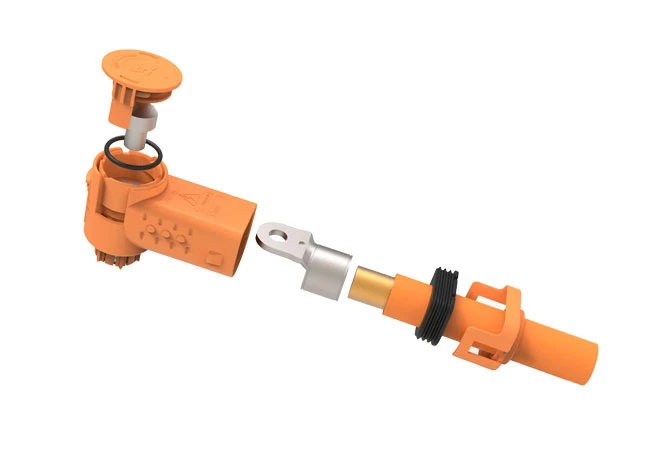

energy storage connector

Saichuan Electronics believes that new energy wind energy storage systems and household energy storage will use energy storage connector products, which provide more reliable performance for energy storage battery equipment, and every step must be strictly checked in the processing process Whether it has reached the standard, especially when the terminal is crimped, some precautions must be brought to our attention, mainly in four aspects, as follows:

  1. There should be no separated wires when crimping the terminal of the energy storage connector, and the number of broken and worn wires should not exceed the given allowable range.

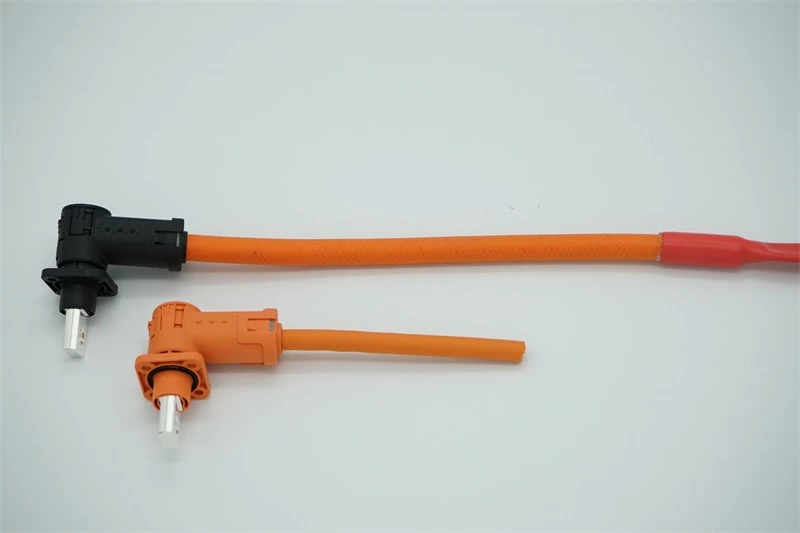

Energy-storage-connector

2. When crimping the terminals of the energy storage connector, the insulating layer should be cut at right angles.


3. When crimping the terminals of the energy storage connector, the diameters of the wires must match, and appropriate equipment should be used for crimping.


4. When the terminal is tested for tensile strength. When tension is applied at a speed of 25.4mm/min for 10 seconds, the crimped wire cannot be pulled out.


After reading the above, you should be very clear about the "Precautions when crimping energy storage connector terminals". Saichuan Electronics will share with you more professional knowledge related to energy storage connectors and energy storage harnesses. Saichuan Electronics is a well-known manufacturer of new energy connectors in China. If you have custom procurement needs such as energy storage plugs and energy storage sockets, please contact us directly: info@sailtran.com .

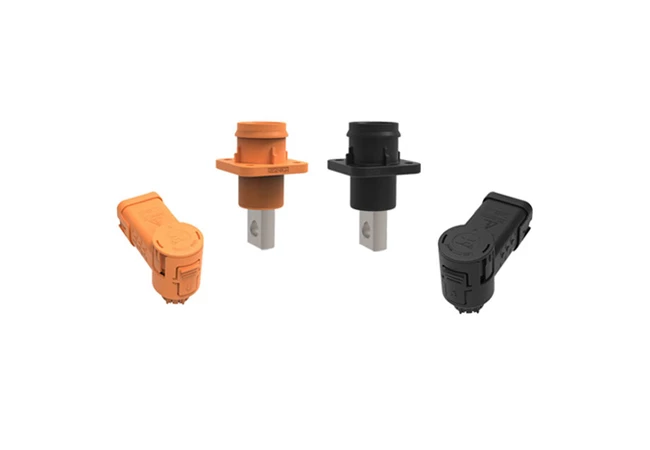

Related Products
